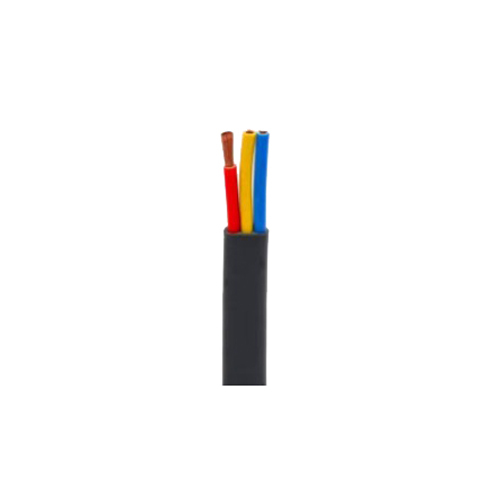

Submersible Flat Cable

• Application
• Other, Submersible pumps, Irrigation, Domestic and industrial water pumps

• Armored Material
• Unarmored

• Cable Type
• Flat Cable

• Color
• Black outer sheath with color-coded inner cores

• Conductor Material
• Other, 100% Pure Copper

• Conductor Shape
• Other, Round (each core)

• Conductor Type
• Stranded

• Connector Color
• Copper (no external connector, tinned ends)

• Core Material
• Copper

• Core Number
• 3

• Diameter
• Approx. 8 mm x 18 mm (3 core, 4 Sqmm)

• Dielectiric Strength
• High (as per IS 694 standards)

• Dimension (L*W*H)
• As specified by manufacturer

• Features
• High conductivity, Flexible, Weather resistant, Durable insulation, Long life, Moisture proof, Heat resistant

• Impedance
• Low, suitable for power transmission

• Install Type
• Permanent laying for underwater & wet conditions

• Insulation
• PVC

• Insulation Material
• Other, PVC (Polyvinyl Chloride)

• Jacket Color
• Black

• Jacket Material
• PVC

• Length
• 100 meters (standard) or as required

• Locking Type
• Non-locking

• Material
• Copper conductor, PVC insulated and sheathed

• Number of Conductor
• 3 Core

• Operating Temperature
• -15C to +70C

• Product Type
• Submersible Flat Cable

• Rated Temperature
• -15C to +70C

• Size
• 4 Sqmm

• Storage Temperature
• Up to 60C

• Tensile Strength
• High tensile PVC insulation

• Usage & Applications
• Submersible pump connections

• Voltage
• Other, Up to 1100 V

• Weight
• Approx. 14 kg per 100 meters

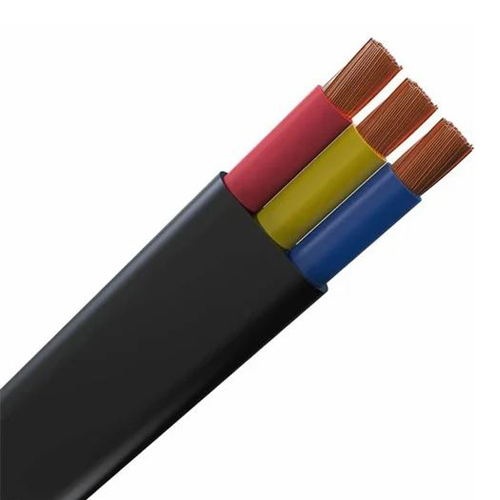

• Application
• Other, Ideal for submersible pumps, Irrigation, Industrial, and Domestic use

• Armored Material
• Unarmored

• Cable Type
• Flat submersible

• Color
• Black outer sheathing; cores: Red, Yellow, Blue or as per standards

• Conductor Material
• Other, 99.97% Pure Copper

• Conductor Shape
• Other, Rectangular/Flat

• Conductor Type
• Other, Stranded copper

• Connector Color
• Copper colored (for conductors)

• Core Material
• Copper

• Core Number
• 3 Core

• Diameter
• Width: 14-16mm, Thickness: 7-9mm depending on size

• Dielectiric Strength
• 3 kV for 1 minute

• Dimension (L*W*H)
• Size specific; typically 100m x 15mm x 7mm (varies by size)

• Features
• High flexibility, Excellent water resistance, Oil and abrasion resistant, Robust design for submersible pumps

• Impedance
• As per IS 694 standard

• Install Type
• Suitable for direct installation in water

• Insulation
• High grade PVC

• Insulation Material
• Other, PVC (Polyvinyl Chloride)

• Jacket Color
• Black

• Jacket Material
• PVC

• Length
• Available in 100m, 500m, or as required

• Material
• Copper conductor with PVC insulation and sheathing

• Number of Conductor
• 3

• Operating Temperature
• -15C to +70C

• Product Type

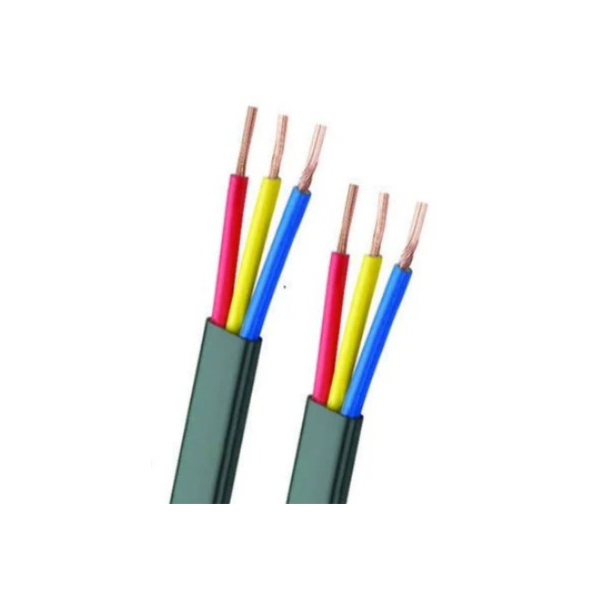

• 3 Core Flat Submersible Cable

• Rated Temperature
• -15C to +70C

• Size
• 1.0 sqmm, 1.5 sqmm, 2.5 sqmm, 4.0 sqmm, 6.0 sqmm (others on request)

• Storage Temperature
• -10C to +70C

• Tensile Strength
• >15 N/mm2

• Usage & Applications
• Suitable for submersible pumps in agriculture, mining, construction, drainage, and industrial settings

• Voltage
• Other, Up to 1100V

• Weight
• Varies with size; approx 15 kg/100m

• Application
• Other, Submersible pumps, irrigation systems, underwater wiring, industrial applications

• Armored Material
• Not Armored

• Cable Type
• 3 Core / 4 Core Flat Cable

• Color
• Black outer sheath, color-coded cores

• Conductor Material
• Copper

• Conductor Shape
• Other, Round (stranded within flat cable)

• Conductor Type
• Other, Stranded Copper

• Connector Color
• Generally Black or Blue

• Core Material
• Copper

• Core Number
• 2, 3, or 4

• Diameter
• Depends on size & number of cores

• Dielectiric Strength
• Up to 3.5 kV

• Dimension (L*W*H)
• Customizable as per requirements

• Features
• High conductivity, excellent insulation, waterproof, flexible, long life, abrasion resistant, weather resistant

• Install Type
• Underground and underwater installation

• Insulation
• PVC insulation

• Insulation Material
• Other, PVC (Polyvinyl Chloride)

• Jacket Color
• Black

• Jacket Material
• PVC

• Length
• Up to 500 meters (customized as required)

• Material
• Copper, PVC

• Number of Conductor
• 2, 3, or 4 Core

• Operating Temperature
• Up to 70C

• Product Type
• Submersible Flat Cable

• Rated Temperature
• Up to 70C

• Size
• 1 sq mm to 16 sq mm (customized size available)

• Storage Temperature
• -15C to +70C

• Tensile Strength
• High tensile strength for underwater application

• Usage & Applications
• Submersible pump connections, agricultural, industrial electricians

• Voltage
• Other, Up to 1100V

• Weight
• Variable as per size & length
